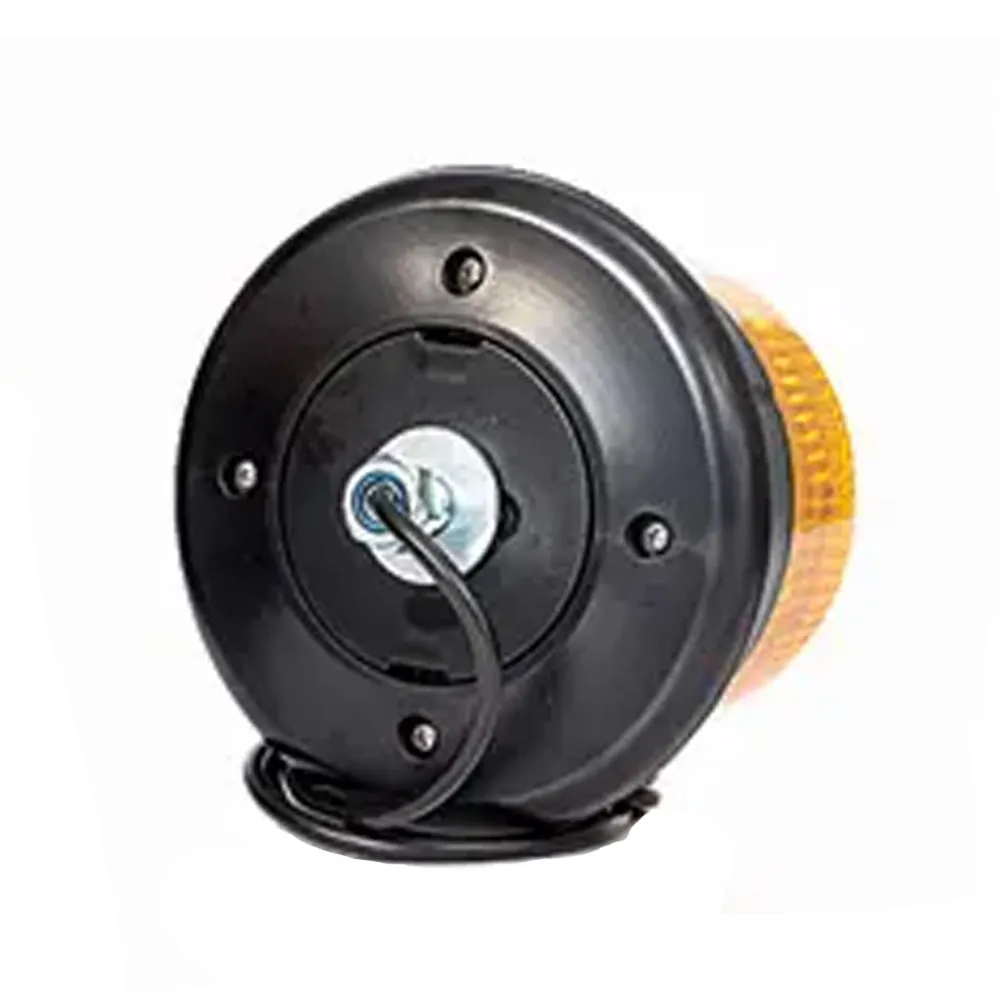

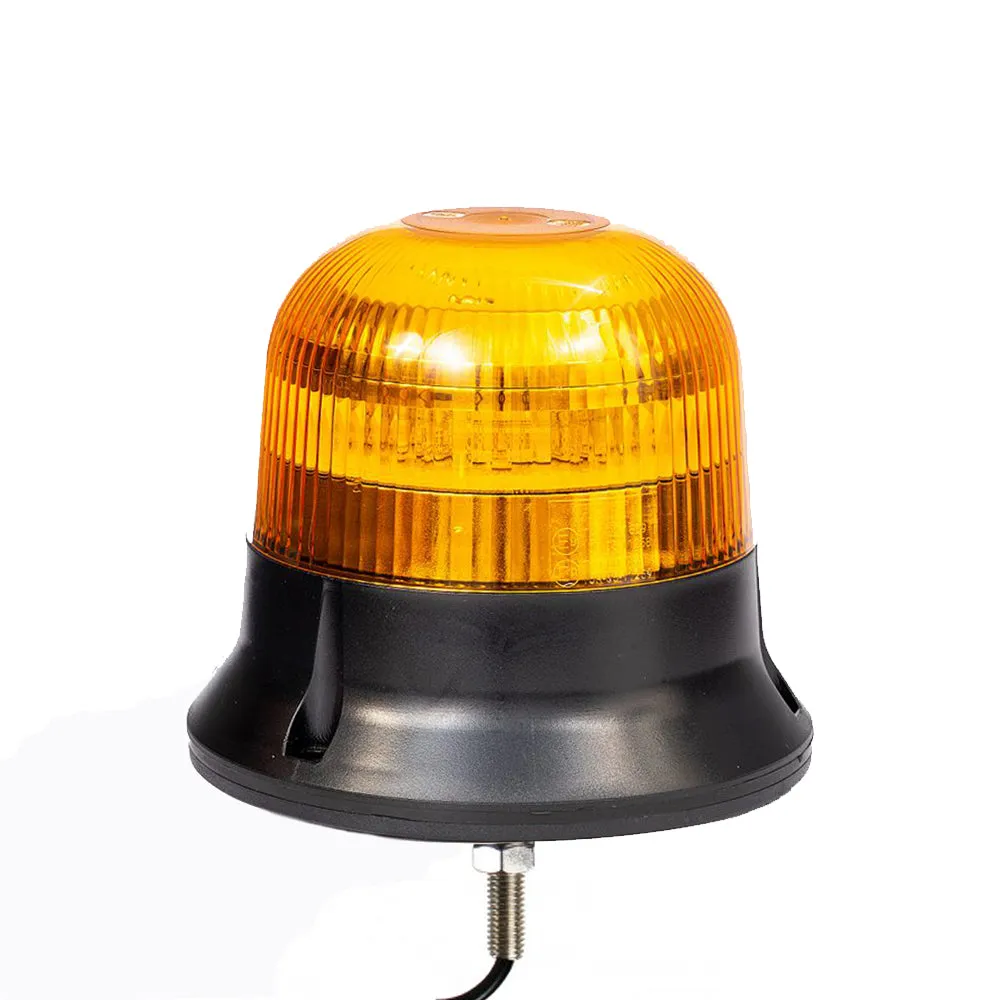

Compact LED Beacon with Sync Function

This premium LED Beacon from Fristom can be synchronised with other identical beacons and these for a consistent flash pattern around the vehicle. See the video to see them in action.

Application of 9 CREE LED diodes

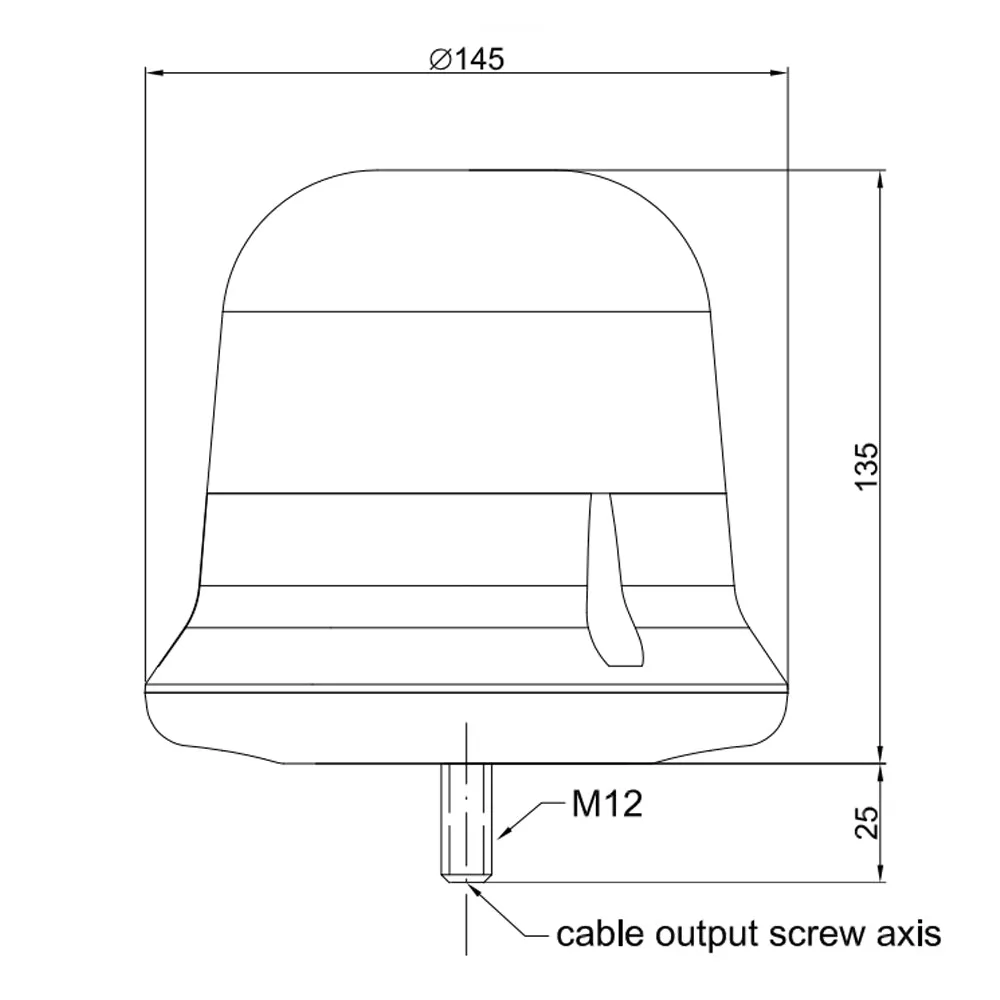

Dimensions: 135 x 145mm
Fixing: Single M12 Bolt
Universal supply votlage 12 – 55V
The lamp is completely waterproof
Power consumption: 12V/24V/48V
Peak power consumption: 1,2A/0,6A/0,32A, average power consumption: 0,5A/0,25A/0,13A
Peak/average rated power: 15W/6W
Special warning lamp approval compliant with ECE Regulation 65 (TA1)
Flash frequency: f = 2,0 Hz - Single flash - See video
ElectroMagnetic Compatibility – EMC certificate
Full waterproofness (IP68)
Shock-resistance – IK
Operating temperaturę -40°C to 55°C
Reverse polarity protection
GROUND (-) white wire; PLUS ( ) black wire
